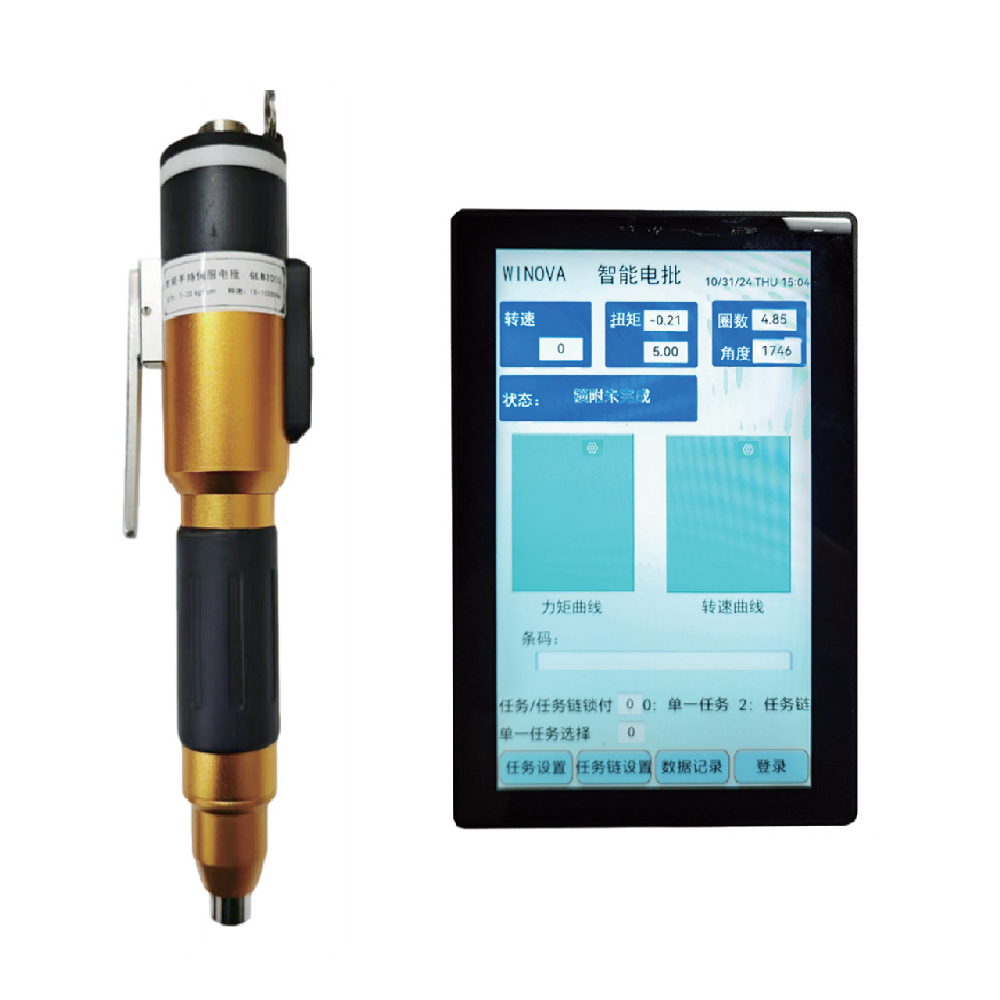

Handheld smart electric screwdriver GLB201000
Handheld smart electric screwdriver GLB201000
Product Features
High-precision torque control, with torque accuracy reaching ±3% - ±5%;
Adopt low-voltage servo motor, long product life, maintenance-free;
Circle number evaluation of floating height/tooth slip, feedback to PLC or control card for abnormal processing;
16 types of tightening tasks, each task supports 5 tightening steps;
Support 8 task chains and 50 product locking process recipes;
Support barcode scanner, locking data can be exported via USB flash drive;
Support RS485 MODBUS RTU communication protocol;
Can be non-standard customized TCP/IP network port, upload to MES system;
Product modle: GLB201000
Torque range(kgf· cm): 2.0-20.0
Free speed(r/min): 1000
Weight(g): 610
Torque adjustment method:With System
Screws: machine thread(mm):<4
Screws:Self-Tapping thread(mm):
Rated voltage: With System
Starting method: Press lever
